Getting Started

Overview

This document provides a getting started guide for building topology from OpenTelemetry (OTel) trace data using component and relation mappings packaged as part of a StackPack.

This guide focuses on topology that can be visualized immediately in the product using telemetry data that is already present. The example topology that will be generated models how a service instance executes a process, derived from OpenTelemetry resource attributes.

Prerequisites

You already collect OpenTelemetry traces.
You are creating or extending a StackPack.
You are comfortable with YAML and basic OTel concepts (resources, spans).

The guide will focus on:

Trace-based topology (TRACES signal only)
Service instances (not logical services)
Runtime process visibility

In this guide, component and relation mappings are expressed as YAML configuration that is packaged, tested, and deployed as part of a StackPack.

The goal: what topology do we want?

Configuring topology

The goal is to visualize runtime execution topology that is immediately available without additional user configuration.

Specifically, we want to model:

service instance (component) -> executes (relation) -> process (component)

Where:

A service instance represents a running instance of an instrumented service.
A process represents the operating system process executing that service.
The executes relation indicates that the service instance is backed by, and running within, a specific process.

All of this topology is derived automatically from OpenTelemetry trace data.

Trace data

In addition to service identity, the trace resource includes process-level attributes, such as:

process.pid
process.executable.name
process.executable.path
process.command_args
process.runtime.name
process.runtime.version

These attributes allow us to model process-level topology without span correlation or heuristics.

Traces to topology: the mental model

Before writing any configuration, it’s important to understand how topology mappings work conceptually.

Components

A component mapping describes how a topology node is created from telemetry data.

Each component mapping:

Selects telemetry using conditions.
Extracts values using expressions.
Produces a single logical component identified by a stable identifier.

In this guide:

Service instances are provided by the OpenTelemetry StackPack.
Processes are derived from OpenTelemetry resource attributes.

Relations

A relation mapping describes how a connection between two components is created.

Each relation mapping:

Resolves a sourceId and a targetId.
Assigns a relation type.
Produces a directed edge.

Relations are created once both the source and target components exist.

Creating service components from traces

Defining what a "service" means

Before writing the mapping, we need to make a design decision.

For this guide, a service is defined as:

Identified by service.namespace + service.name.
Stable across deployments.
Independent of service instances.

This keeps topology readable and low cardinality.

Service instance components

Service instance components are already defined and provided by the OpenTelemetry StackPack.

Each service instance:

Is derived from service.name, service.namespace, and service.instance.id.
Represents a concrete running instance of a service.
Is stable across signals (traces and metrics).

Because this mapping already exists, it is not redefined in this guide. Instead, we build on top of it.

Creating process components from traces

Defining what a "process" means

For this guide, a process is defined as:

Identified by host.name, process.pid and executable metadata.
Scoped to a single runtime environment.
Derived exclusively from OpenTelemetry resource attributes.

This keeps the topology low-cardinality while still exposing useful runtime detail.

Process component mapping

The following component mapping creates one topology component per observed process.

_type: "OtelComponentMapping"
name: "OTel Process"
description: "Represents an operating system process derived from OpenTelemetry"
identifier: "urn:stackpack:<stackpack-name>:shared:otel-component-mapping:process"
input:
  signal:
    - "TRACES"
  resource:
    condition: |
      'host.name' in resource.attributes &&
      'process.pid' in resource.attributes
    action: "CREATE"
vars:
  - name: "pid"
    value: "${string(int(resource.attributes['process.pid']))}"
  - name: "hostname"
    value: "${resource.attributes['host.name']}"
  - name: "executableName"
    value: >-
      ${
        'process.executable.name' in resource.attributes ?
         resource.attributes['process.executable.name'] :
          'process.command' in resource.attributes ?
           resource.attributes['process.command'] :
            'process.command_args' in resource.attributes ?
             resource.attributes['process.command_args'] :
                resource.attributes['process.executable.path']
      }
output:
  identifier: "urn:opentelemetry:process/${vars.hostname}:${vars.pid}"
  name: "${vars.hostname}/${vars.executableName}:${vars.pid}"
  typeName: "process"
  typeIdentifier: "urn:stackpack:open-telemetry:shared:component-type:process"
  layerName: "Applications"
  domainName: "Open Telemetry"
  required:
    tags:
      - source: "process-component"
        target: "custom"
      - source: "${resource.attributes}"
        pattern: "process.(.*)"
        target: "process.${1}"
expireAfter: 900000

How this mapping works

We process trace data only (TRACES signal).
A process component is created whenever host.name and process.pid is present.
The identifier is stable for the lifetime of the process.
A custom tag is added to aid filtering (for the verification stage).

Substitute <stackpack-name> with the name of your StackPack.

Creating executes relations

Now that service instances and processes exist as components, we can connect them.

Service instance executes process

The following relation mapping creates an executes relation from a service instance to a process.

This mapping is adapted from the existing "host executes service instance" relation provided by the OpenTelemetry StackPack.

_type: "OtelRelationMapping"
name: "Executes Relation (Service Instance -> Process)"
description: "Service instance executes a process"
identifier: "urn:stackpack:<stackpack-name>:shared:otel-relation-mapping:executes-service-instance"
input:
  signal:
    - "TRACES"
  resource:
    condition: |
      'service.name' in resource.attributes &&
      'host.name' in resource.attributes &&
      'process.pid' in resource.attributes
    action: "CREATE"
vars:
  - name: "namespace"
    value: "${'service.namespace' in resource.attributes && resource.attributes['service.namespace'] != '' ? resource.attributes['service.namespace'] : 'default'}"
  - name: "service"
    value: "${resource.attributes['service.name']}"
  - name: "instanceId"
    value: >-
      ${
        'service.instance.id' in resource.attributes && resource.attributes['service.instance.id'] != '' ?
        resource.attributes['service.instance.id'] :
        resource.attributes['service.name']
      }
  - name: "hostname"
    value: "${resource.attributes['host.name']}"
  - name: "pid"
    value: "${string(int(resource.attributes['process.pid']))}"
output:
  sourceId: "urn:opentelemetry:namespace/${vars.namespace}:service/${vars.service}:serviceInstance/${vars.instanceId}"
  targetId: "urn:opentelemetry:process/${vars.hostname}:${vars.pid}"
  typeName: "executes"
expireAfter: 900000

How this mapping works

We process trace data only (TRACES signal).
The relation is created whenever both service instance and process data are present.
No span correlation is required.
The targetId expression needs to be the same as the process component mapping’s output.identifier expression.

The relation identifier is constructed (automatically) from the sourceId and targetId, and is of the form: sourceId-relationId

Substitute <stackpack-name> with the name of your StackPack.

Validating the OTel mappings

Assuming both mappings live inside your StackPack, they can be tested together. Refer to StackPack CLI documentation for more information.

Using the sts stackpack test --yes command, you can:

Package, upload, and install/upgrade the StackPack
Validate the declarative component and relation mappings residing in the StackPack (e.g., expression correctness, correct reference of input signal data based on filtering provided)

The sts stackpack test command doesn’t feed example trace data through the mappings. To verify that the mappings produce the correct topology, ensure Open Telemetry trace data is sent to SUSE Observability. Refer to the Develop a Custom Integration (StackPack) for more details on how to use sts stackpack test.

Resulting topology

When these mappings are applied, the resulting topology forms a service-process graph derived entirely from trace data.

For example, using the checkoutservice from the OTel demo app, visually, the topology should appear as:

checkoutservice (instance) ─> executes ─> checkoutservice (process)

This topology updates continuously as new traces arrive and automatically expires when traffic stops.

View the resulting topology in SUSE® Observability

Use the SUSE® Observability UI to get visual confirmation that the mappings materialize into the expected topology.

Open the SUSE® Observability UI at the configured baseUrl Helm value
In the left-hand sidebar, click on Open Telemetry > Services Instances
Find the checkoutservice in the list of service instances and click on the service instance name to open the Component Overview/Highlights page
In the sub navigation-bar at the top, select Topology
In the Outgoing layer, an od-checkoutservice-<hostId>/checkoutservice:1 (process) node should be visible
Select the process node, and click Explore component

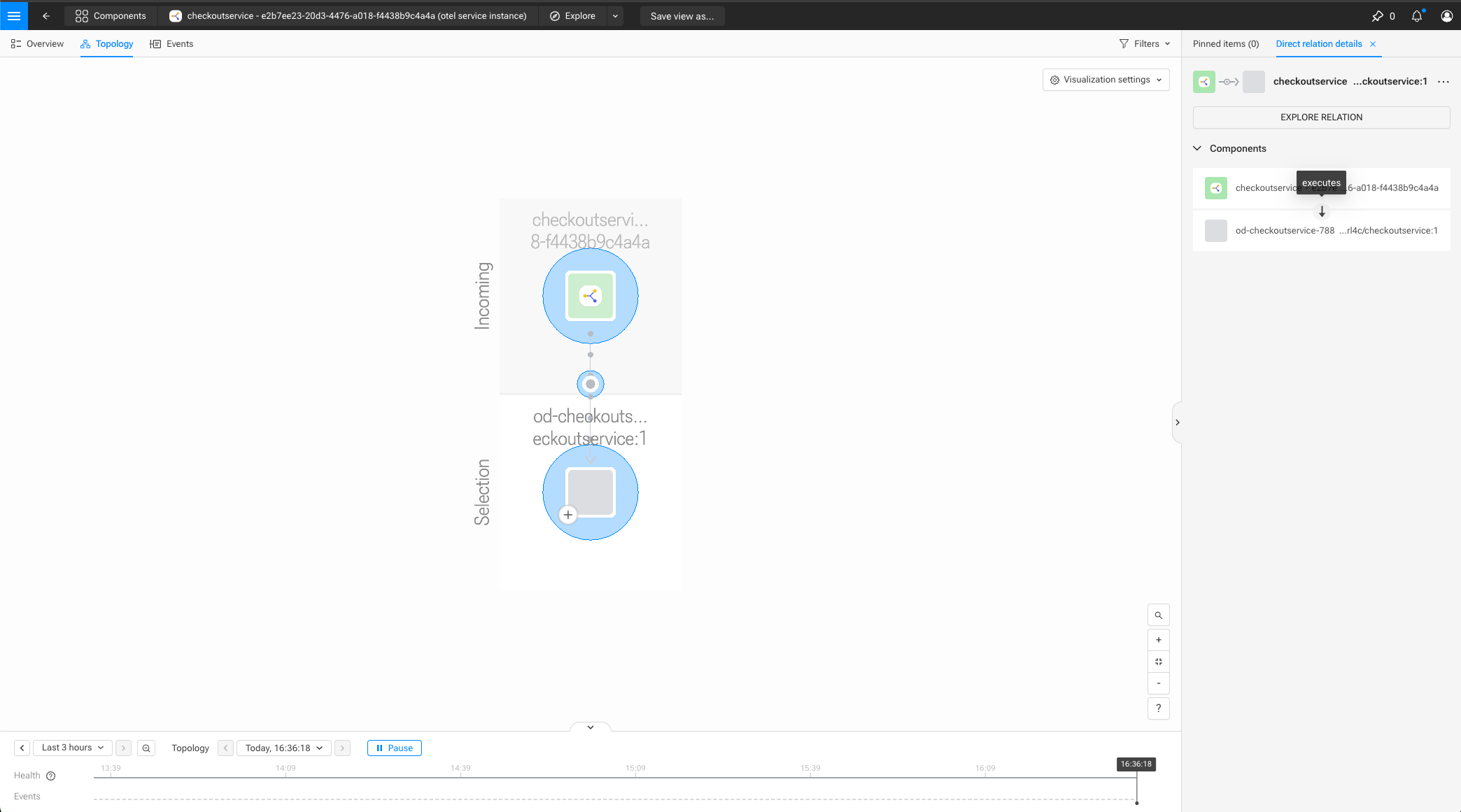

A smaller topology visualizing checkoutservice → executes → checkoutservice (process) should be visible

See the Troubleshooting guide for tips to debug if the topology is not materializing as expected.

Topology result

To see all the process components created as a result of the process component mapping being applied:

Open the SUSE® Observability UI at the configured baseUrl Helm value
In the left-hand sidebar, click on Open Telemetry > Services Instances
In the sub navigation-bar at the top, click on Save view as… and give it a name (e.g., Custom process components)
In the left-hand sidebar, click on Views, and open the view created in step 3
In the sub navigation-bar at the top, on the far right, click on Filters
Remove otel service instance from the Component Types field, and type process
Remove stackpack:opentelemetry from the Component Labels field, and type custom:process-component

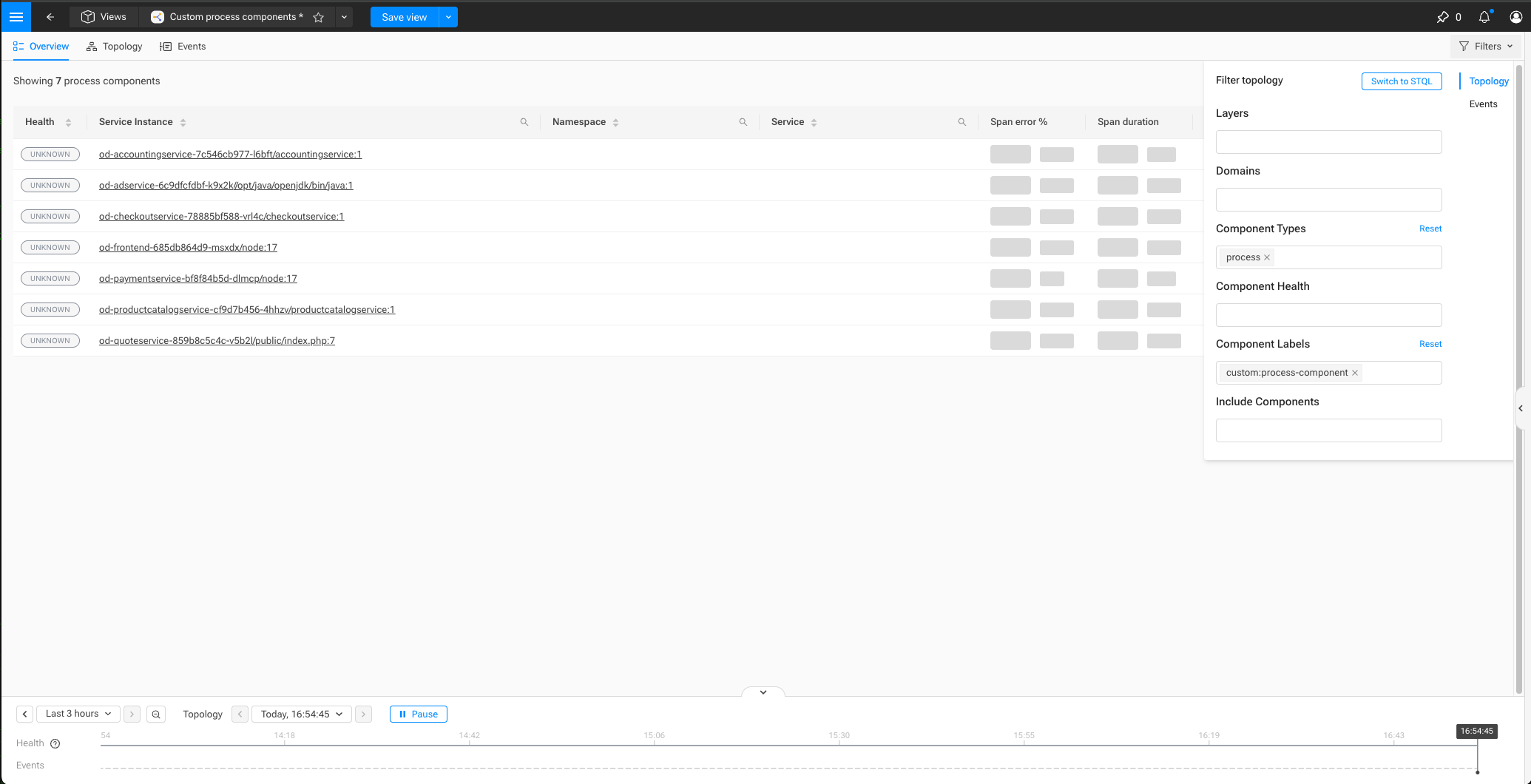

Custom view

Summary

In this guide, you:

Built on existing service instance components.
Derived process components from OpenTelemetry resource attributes.

Next steps

From here, you can:

Attach processes to hosts or containers.
Introduce database or messaging relations.
Introduce runtime-specific layers (JVM, Go, Node.js).
Explore metrics-based service graphs.
Extend the StackPack with additional topology layers.
Familiarize yourself with an in-depth component and relation mapping reference.
